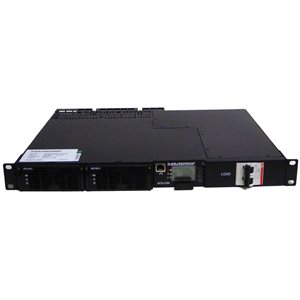

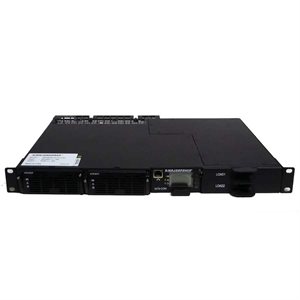

Majortel Système d'alimentation CC
Les systèmes d'alimentation de CC Majortel de Majorpower sont des redresseurs modulaires 1U et 2U au design compact et élégant. Les installations peuvent comprendre un, deux ou quatre systèmes modulaires fiables à haute densité avec des interrupteurs de 15 ou 25 ampères chaque un pour une capacité totale du système d'alimentation CC de plus de 2800W (1U) ou 5800W (2U).
Model Selection Guide
MAJORTEL 48VDC 30A
| MODEL | MTS48/30BL-1U | MTS48/30FL-1U |
| DC Output Range | 42-58 VDC | |
| Type of System Chassis | 1U; Rackmount 19” | |
| Dimensions | 19” W x 10.38” D x 1.74” H / 443mm x 263.7mm x 44.3mm | |
| Weight-Chassis Only | 13.2 lbs.; 6kg | |
| Weight-Max with Rectifiers | 20.2 lbs / 9.2kg | |
| Controller | MTS-Com with Communication Interface | |
| Low Voltage Disconnect | Integrated; Battery | |
| AC Connection Type | IEC-320; 6ft NEMA to IEC cord included | |
| Rectifier | MTR48/15-1U | |
MAJORTEL 24/48VDC 50A
| MODEL | MTS24/50AT-1U | MTS48/50AT-1U |
| DC Output Range | 21-29 VDC | 42-58 VDC |
| Number of Switch-Mode Rectifier(s) | 2 | |
| Type of System Chassis | 1U, Rackmount 19” | |
| Dimensions | 19” W x 10.38” D x 1.74” H / 443mm x 263.7mm x 44.3mm | |
| Weight-Chassis Only | 13.2 lbs.; 6kg | |
| Weight-Max with Rectifiers | 20.2 lbs.; 9.2kg | |
| Controller | MTS-Com with Communication Interface | |
| Low Voltage Disconnect | Integrated; Battery | |
| AC Connection Type | 3 Wire Terminal | |
| Rectifier | MTR48/25-1U | |
MAJORTEL 48VDC 50-100A
| MODEL | MTS48/50AT-2U | MTS48/75AT-2U | MTS48/100AT-2U |
| DC Output Range | 42-58 VDC | ||
| Number of Switch-Mode Rectfier(s) | 2 | 3 | 4 |
| Dimensions | 2U; Rackmount 19” | ||
| System Chassis | 19” W x 11.08” D x 3.47” H / 482.6mm x 281.5mm x 88.1mm | ||
| Weight-Chassis Only | 22lbs / 10kg | ||
| Weight-Max with Rectifiers | 27.8 lbs.; 12.6kg | 30.7lbs.; 13.9kg | 33.6lbs.; 15.2kg |
| Controller | MTS-Com with Communication Interface | ||
| Low Voltage Disconnect | Integrated; Battery | ||
| AC Connection Type | (2) 3-Wire Terminals | ||
| Rectifier | MTR48/25-1U | ||
<
